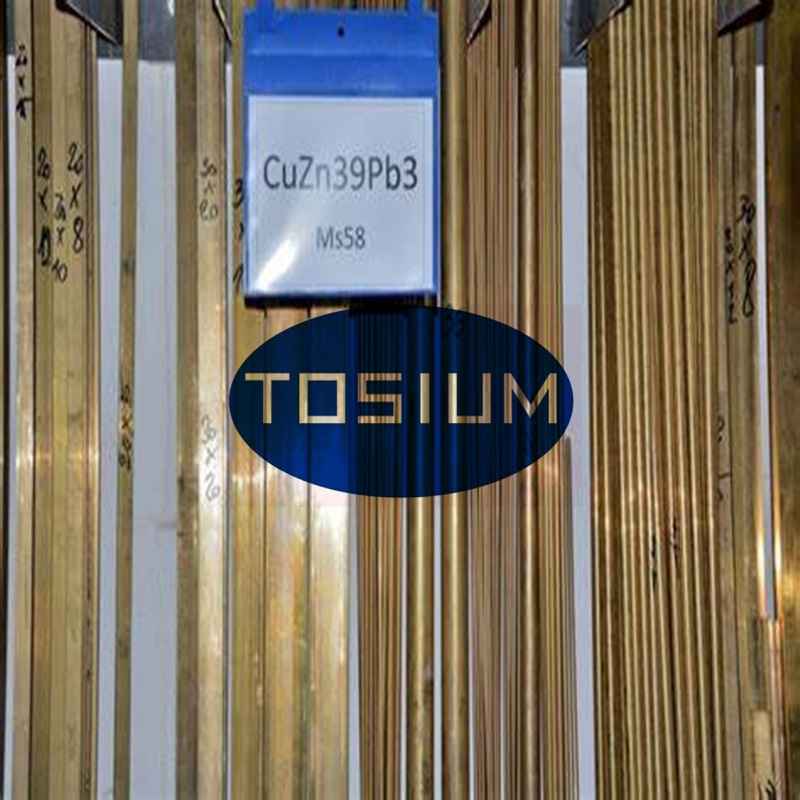

CuZn39Pb3易切削铅黄铜合金 CW614N, 2.0401, C3604, HPb59-3, MS58, MA38B, C38500, CZ120
CuZn39Pb3易切削铅黄铜合金 CW614N, 2.0401, C3604, HPb59-3, MS58, MA38B, C38500, CZ120
- 产品详情
- 产品参数
CuZn39Pb3易切削铅黄铜合金是应用较广的铅黄铜，可切削性好，有良好的力学性能，能承受冷、热压力加工，易焊接，纤焊好，对一般腐蚀有良好的稳定性，但有腐蚀破裂倾向，主要用于空调阀门、五金机械等。
Material CuZn39Pb3, mat. No. CW614N, is an unhardenable wrought alloy. to the comparable make CuZn39Pb3, mat. No. 2.0401 acc. to DIN 17660 : 1983-12 applies: High hardness and strength parameter are achievable by cold forming only. Thermal and electrical conductivity are lower than for unleaded brass of the same Zn-content. Machinability is improved by Pb-addition. Corrosion resistance to water, several saline solutions and organic liquids is also lower than for unleaded alloys of the same zinc-content. Processing properties: warm forming: very good cold forming: unfavorable machinability: very good hard soldering: moderately soft soldering: very good TIG-welding: unfavorable burnishing: very good Application: Main alloy of the brass materials for machining on automats. Use for all types of form turning parts, in precision engineering as well as in watch and electrical industry.
Chemical Composition
Spec: EN 12164:2011
CuZn39Pb3
| Chemical Element | % Present |
|---|---|
| Copper (Cu) | 57.00 - 59.00 |
| Lead (Pb) | 2.50 - 3.50 |
| Aluminium (Al) | 0.0 - 0.05 |
| Iron (Fe) | 0.0 - 0.30 |
| Nickel (Ni) | 0.0 - 0.30 |
| Others (Total) | 0.0 - 0.20 |
| Tin (Sn) | 0.0 - 0.30 |
| Zinc (Zn) | Balance |
Properties
| Physical Property | Value |
|---|---|
| Density | 8.47 g/cm³ |
| Melting Point | 875 °C |
| Thermal Expansion | 20.9 x10^-6 /K |
| Modulus of Elasticity | 97 GPa |
| Thermal Conductivity | 123 W/m.K |
| Electrical Resistivity | 0.062 x10^-6 Ω .m |
Spec: EN 12164:2011
Bar - 6mm to 80mm Dia. / 5mm to 60mm AF
| Mechanical Property | Value |
|---|---|
| Proof Stress | 230-350 MPa |
| Tensile Strength | 360-500 MPa |
| Hardness Brinell | 90 to 160 HB |
| Elongation A | 20 to 5 % |
